Antari UV Wash 2000; 27 x 365nm UV wash w/modular adjustable strips
Antari DFX-W2000 UV Wash 2000; 27 x 365nm UV wash w/modular adjustable strips High Efficiency UV LED Fixtures
The Antari DFX-W2000 UV Wash 2000 is a professionally designed high-output UV LED wash panel, carefully made well suited for UV reactive material, amusement park displays, art, and signage that comes along with bright and vivid colors. The 27 x 1.9W high-power UV LEDs are made for offering a peak wavelength of 365nm and a radiant flux output of 20290mW at full intensity (and minimal visible light). The fixture is offering a 25° beam angle and is flicker-free for TV and film production. Special optics are intended for preventing wear degradation from high-UV exposure.

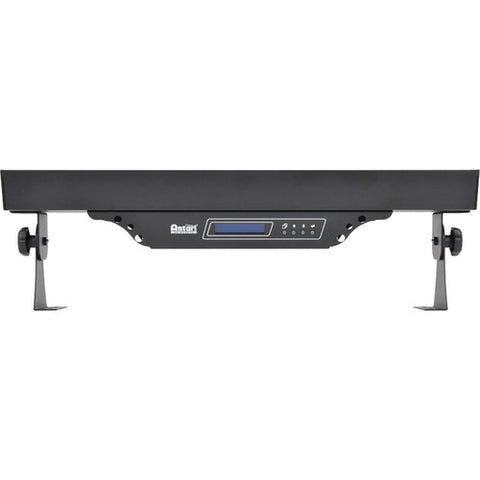

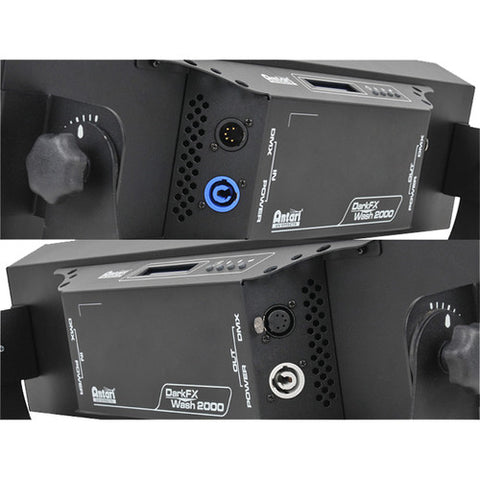

The 5-pin DMX and powerCON power connectors are made for offering both input and output designed for daisy-chaining multiple fixtures. An onboard four-button touch control panel is for giving you the capability to easily set different options including manual or DMX control modes. The rugged aluminum enclosure is built for handling the rigors of on-the-road wear and tear, and at the same time the two mounting brackets are allowing the fixture to be deployed on the ground or mounted to a truss. The Antari DarkFX UV Wash 2000 ships along with a powerCON TRUE 1 power cord.
- High-efficiency UV LEDs
- 25° beam angle

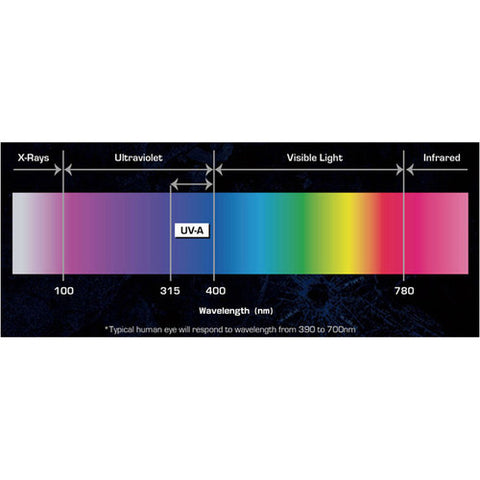

- 365nm peak wavelength
- 20,290mW high-output at full intensity
- Special optics to prevent wear degradation from high-UV exposure

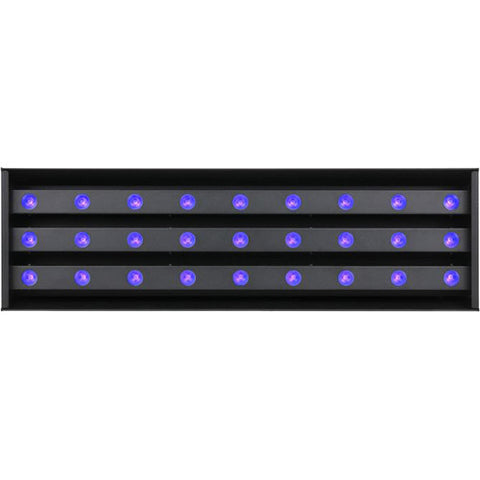

- Three adjustable LED arrays to maximize coverage
- Flicker-free operation for TV and Film
Specifications:
Light Source | 27 x 1.9 W High Power UV LEDs 20,000 Hour Average LED Life |
Photometrics | Optics: 25° Peak Wavelength: 365nm Radiant Flux Output: 29,290 mW |
Control and Connectors | Manual and DMX512 Control 4-Button Control Panel 5-Pin DMX In/Out powerCON TRUE1 In/Out |
Power Requirements | 100 to 240 VAC, 50/60 Hz |
Power Consumption | 110 VAC: 45 W 220 VAC: 50 W |
Approvals | CE |
Ratings | IP20 |
Dimensions (L x W x H) | 23.6 x 7.1 x 7.2" / 60 x 18.1 x 18.1 cm |
Weight | 14.0 lb / 6.4 kg |
